What is a Regular Exppression?
A regular expression (also known as regex) is a sequence of characters that specifies a match pattern in the text.
For example: the field that you want to scan is an Order Number, which is not barcoded.
Very often, on the same paper as where the order number is printed, there is a lot more information to be found. The scanner - in all its enthusiasm - might read more than just the Order number, giving you an "incorrect" unique reference.
How does it work?
A regular expression is constructed by the following parts: [A-Z]{n}\d{n} ("n" stands for a number). To further explain these characters one by one:
-
[A-Z] matches a string of Capitalised letters from A-Z, for example, YRHA or OSN.
-
{n} matches how many letters does this string have. So, if it's [A-Z]{2}, that means there are two Capitalized letters, for example, MA, CB, etc.
-
\d{n} matches how many numbers (digits) are there. So if it's \d{6}, that means there are 6 numbers in total, as an example, 864258.
Let's practice
-
If your reference or seal number consists of simply a series of numbers:
For example, 004188, the regular expression is \d{6}.
-
If your reference or seal number consists of several Capitalized letters and a series of numbers:
-
For example, MA46678, the regular expression is [A-Z]{2}\d{6}. Another example is ESCA30522, its regular expression is [A-Z]{4}\d{5}
Online there are many available AI tools to set up your regular expression in a second. Need some help? Reach out to our support team.

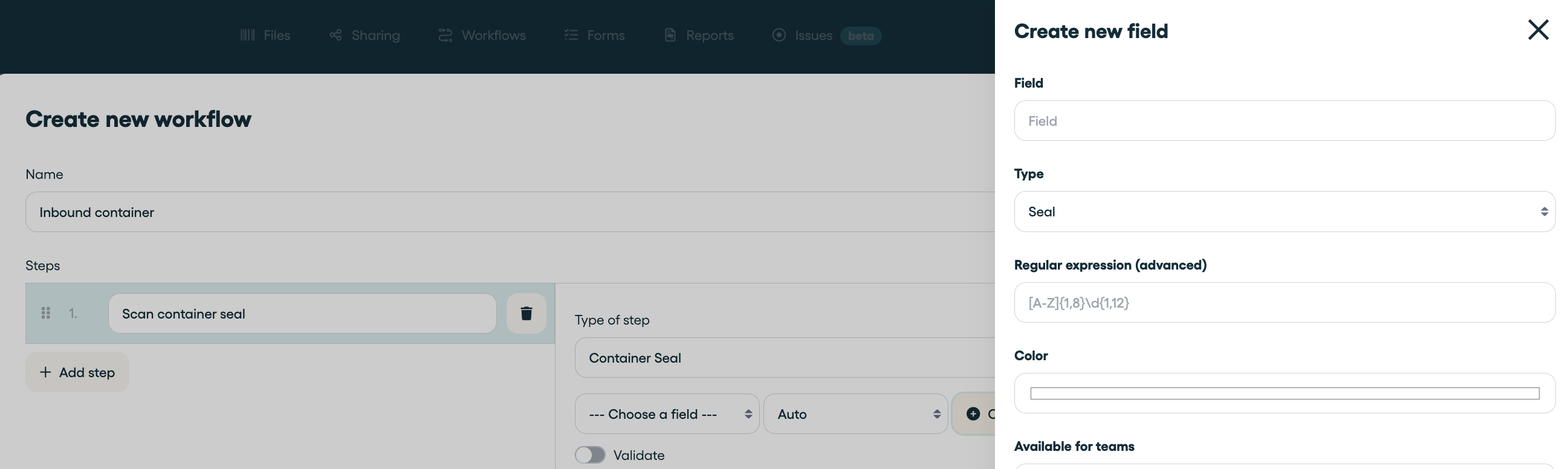

How to set it up in a Workflow?
You can use the regular expression only in the Container Seal to either scan text (OCR) or a Barcode.
Simply create a new 'Seal' field and fill in the Regular Expression.
More information about the regular expression and the seal scanner in this article.
